Blackbird 4K 1X8 HDMI Splitter w/ 3D Support

$114.99

Add to Cart:

  • Model: BH-SP-1X8

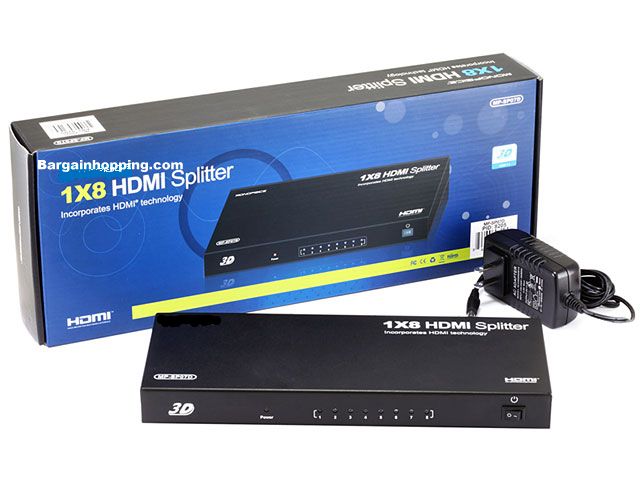

Blackbird™ 4K 1X8 HDMI® Splitter w/ 3D Support

Watch your video content on eight displays at the same time using this 1x8 HDMI® Splitter from Monoprice!

This splitter features an internal amplifier, which boosts the HDMI signal and allows the transmission of High Speed HDMI signals (1080p) up to 49 feet (15 meters) using ordinary High Speed HDMI cables. The one HDMI input and eight HDMI output ports are gold-plated to ensure smooth, corrosion-free connections. The splitter is powered by an included 5 VDC, 3A AC adapter.

The splitter supports High Speed HDMI signals, which means that it supports the following HDMI features:

  • 1080p Resolution - It supports the full 1080p@60Hz HDMI resolution.
  • 3D Video - It supports all standard HDMI 3D modes.
  • Deep Color - It supports deep color up to 12-bits per channel, 36-bits total.
  • High Definition Audio - It supports high-definition multi-channel audio signals, including Dolby TrueHD™ and DTS-HD Master Audio™.

Note: BargainHopping strongly recommends using 22AWG, 24AWG, or active HDMI cables with Redmere technology to achieve the best results and to ensure minimum signal loss over longer distances.

Full Specs

Specifications
Data Transfer Speed/Rate up to 675MHz/6.75Gbps (225MHz/2.25Gbps per channel)
Supported Video Formats 480i, 576i, 480p, 576p, 720p, 1080i, 1080p, 4K
3D Video Support Yes
Deep Color Support 36-bits total (12-bits per channel)
Supported Audio Formats DTS-HD Master Audio, Dolby TrueHD, LPCM7.1, AC3, DTS, DSD
Input Video Signal 0.5-1.0 Vp-p
Input DDC Signal 5 Vp-p (TTL)
Transmission Distance up to 49 ft. (15m) using 26AWG Standard HDMI Cable
Power consumption up to 10W
Operating Temperature Range +23 to +95°F (-5 to +35°C)
Operating Humidity Range 5 to 90% RH (non-condensing)
Dimension (LxWxH) 10.6" x 4.3" x 1.1" (270 x 110 x 28 mm)
Net Weight

29.6 oz. (840g)
